A small leak around the oil cooler can turn into an expensive engine problem quickly. Engine oil cooler leak symptoms are not always obvious at first, especially when oil is collecting behind an engine cover or coolant is disappearing without a puddle under the vehicle. Catching the pattern early gives you a better chance of replacing one part instead of dealing with overheating, low oil pressure, or internal engine damage.
An oil cooler is a heat exchanger. Depending on the vehicle, it may use engine coolant to pull heat from the oil, or it may sit in the airflow at the front of the vehicle with dedicated oil lines. Both designs can leak, but the warning signs and repair costs can differ.
8 engine oil cooler leak symptoms to watch

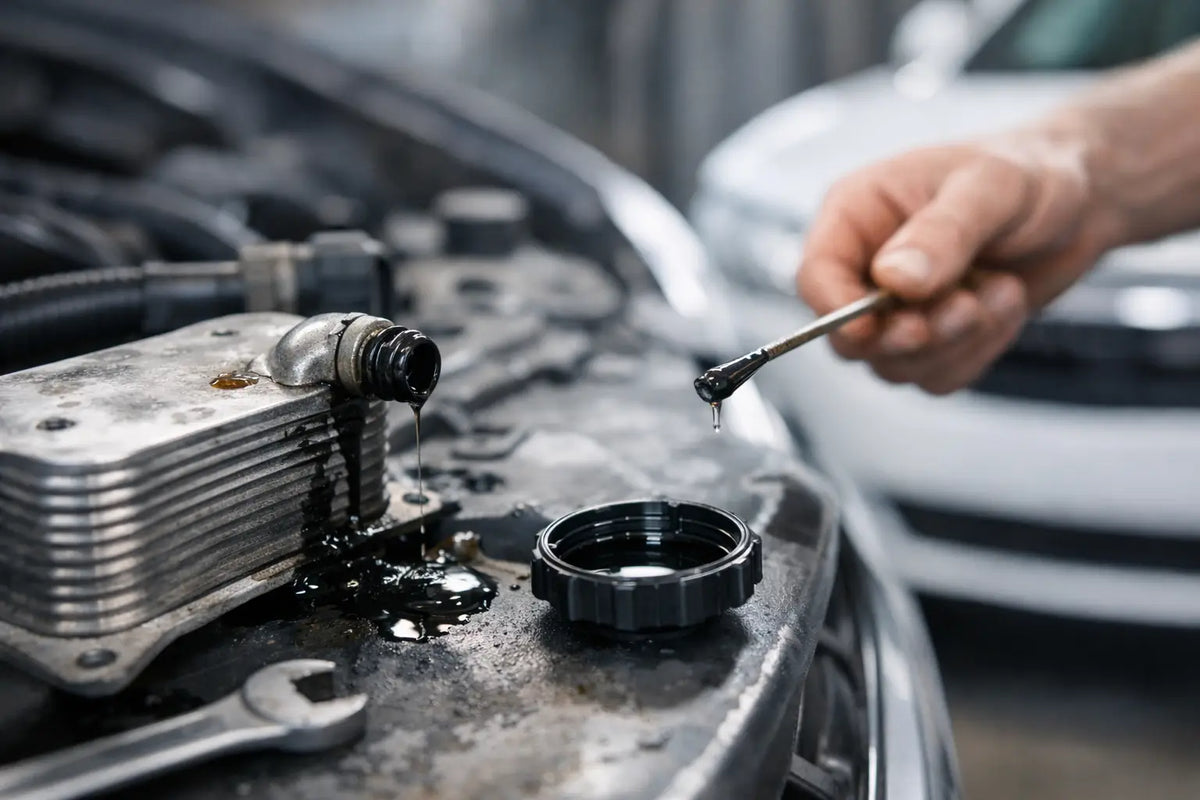

1. Oil leaking near the oil filter housing or cooler lines
This is one of the most common signs on vehicles with a coolant-fed oil cooler mounted near the oil filter. You may see fresh oil on the filter housing, under the intake manifold, around the cooler gasket, or running down the side of the engine.
Do not assume the cooler itself is automatically at fault. An oil filter housing gasket, valve cover gasket, pressure switch, or nearby line can leave oil in the same area. Clean the area first, run the engine, and inspect it again with good lighting. The highest wet point is usually more useful than the lowest drip point.
On air-cooled units, inspect the cooler core, hose fittings, crimps, and lines. A damp fitting may be repairable with a seal or line replacement. A cracked core generally is not worth guessing at.
2. Coolant loss with no clear external coolant leak
A coolant-fed engine oil cooler has coolant passages beside oil passages. If the cooler housing, gasket, or core fails externally, you may find coolant around the assembly. If it fails internally, coolant can enter the oil circuit or oil can enter the cooling system.
A dropping coolant level is not proof of an oil cooler failure. It could also point to a radiator leak, water pump, thermostat housing, heater hose, intake gasket, or head gasket. Still, if coolant loss appears alongside oil contamination or oily residue in the expansion tank, the cooler needs attention.
Never remove a radiator or coolant reservoir cap on a hot engine. Let the system cool fully first.
3. Oily film or sludge in the coolant reservoir
Oil in the coolant is a serious warning sign. Look for a brown, black, or tan greasy film in the coolant reservoir, under the cap, or along the inside walls of the tank. In severe cases, coolant can look muddy and leave thick residue throughout hoses and the radiator.
An internally failed engine oil cooler can cause this, but it is not the only explanation. A blown head gasket, cracked cylinder head, or cracked engine block can create similar contamination. The difference matters. Replacing an oil cooler will not fix a combustion leak, and continuing to drive while guessing can make the final repair much larger.
A pressure test and a proper inspection are the sensible next steps. Some vehicles also allow the cooler to be isolated and tested separately.
4. Milky or creamy engine oil
When coolant mixes with engine oil, the oil can become milky, creamy, or light brown. Check the dipstick and the underside of the oil filler cap. A small amount of light residue under the cap can happen during short-trip winter driving, especially in Canadian conditions where the engine does not fully warm up. That alone does not confirm a failed cooler.
The bigger concern is a rising oil level, milky oil on the dipstick, or a thick, coffee-coloured mixture during an oil change. Coolant reduces the oil's ability to lubricate bearings, camshafts, timing components, and turbocharger parts. Do not treat this as a drive-it-until-the-weekend issue.
5. Engine overheating or unstable temperature readings
A leaking oil cooler can contribute to overheating if it causes coolant loss or restricts coolant flow. The temperature gauge may climb in traffic, under load, or during longer highway runs. You may also notice the cabin heater blowing cooler than usual because the cooling system is low on coolant or has air trapped inside.
Overheating has many causes, including a stuck thermostat, weak water pump, failed cooling fan, blocked radiator, or low coolant from another leak. The oil cooler is one item in the system, not the default answer. Check the basics before buying parts.
If the temperature warning comes on, pull over safely and shut the engine down as soon as practical. Continuing to drive an overheating engine can turn a gasket or cooler repair into cylinder-head work.
6. Low oil level, oil-pressure warnings, or burning-oil smell
An external oil cooler leak can slowly lower the engine oil level. You may see an oil warning light, receive a low-oil message, smell oil burning on hot exhaust components, or notice smoke from the engine bay after a drive.
A warning light can also have other causes, including a faulty sensor or actual low oil pressure from internal wear. Check the oil level on level ground after the engine has been off long enough for oil to drain back. If the level is low, top it up with the correct oil before moving the vehicle, then find the leak. Adding oil without repairing the cause is only a temporary safeguard.
7. Visible damage after a road impact or corrosion
Front-mounted oil coolers are exposed to road debris, salt, moisture, and minor impacts. In Canadian winters, corrosion around fittings and lines deserves extra attention. A stone strike can bend fins without creating an immediate leak, then vibration finishes the job later.
Inspect the cooler through the grille area where possible. Look for wet fins, green or pink coolant staining, oily dirt stuck to the core, bent lines, and corrosion around connections. A heavily damaged cooler should be replaced rather than patched.
8. Repeated leaks after a recent oil cooler repair
If the cooler or its seals were recently replaced and the same area is wet again, look beyond the new part. Incorrect gasket placement, dirty mating surfaces, over-tightened fasteners, damaged threads, warped housings, and old brittle hoses can all cause a repeat leak.
This is also where exact fitment matters. Oil coolers can look nearly identical while using different port sizes, mounting points, sensor provisions, hose routing, or gasket designs. Match the part to the vehicle's year, make, model, engine, and any applicable OEM number. A lower price is only a real saving when the part fits correctly.
How to confirm the source before ordering
Start with a cold-engine visual inspection. Check the oil level and coolant level, then look around the cooler, filter housing, oil lines, and nearby seals. Clean heavy grime so fresh leakage is easier to trace. If the vehicle is safe to run, inspect again after a short drive and avoid touching hot components.
For a suspected internal leak, a shop can pressure-test the cooling system, inspect for combustion gases, and test or isolate the oil cooler where the design allows. This diagnosis is worth paying for when oil and coolant are mixing. The parts involved may be costly, but replacing the wrong one costs more.
Also check service information for your exact vehicle. Some engines have known cooler gasket failures; others are more likely to leak from a housing, line, or adapter. Do not rely on a symptom list alone when the consequences include engine damage.
When to stop driving
Stop driving and arrange a repair if the engine is overheating, the oil-pressure warning stays on, coolant and oil are clearly mixing, or oil is dripping onto hot exhaust parts. These are not minor seepage symptoms.
A light external seep may allow a short trip to a repair shop after confirming fluid levels, but that depends on the leak rate and vehicle. Carrying extra oil or coolant is not a repair plan. Monitor both levels closely and avoid long trips, towing, and hard acceleration until the fault is fixed.
Buying an engine oil cooler without wasting money
Replacement parts can be a sensible place to save, particularly on a vehicle you plan to keep. Before purchasing, verify the exact engine code where applicable, connector and line locations, cooler dimensions, included seals, and whether the listing is for the cooler only or a complete housing assembly.
If buying a liquidation or open-box automotive part, read the listing details and inspect every photo. Confirm what is included, whether original packaging is present, and whether fittings, gaskets, or hardware are supplied. At Last Price Liquidation, inventory changes quickly and items are sold as-is, so fitment checks need to happen before checkout, not after the box arrives.
The right response to a suspected cooler leak is simple: verify the source, protect the engine fluids, and buy the exact part the vehicle needs. A careful check now is cheaper than finding coolant in the oil after the damage is done.
